100 m/min High Speed Drywall Roll Forming Machine Omega Wall Angle and U Shape Making Machine
Furring channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.
Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
In Drywall system and drywall partition system, we could provide roll forming machine as following:
1. Metal stud roll formingmachine
2. Metal track roll forming machine
3. Conner bead (Angle bead) roll forming machine
| | Items | Specifications |
| Material of coil | Material Thickness | 0.4-1.2mm |
| Punching device | Hydraulic punching device | 1 set |
| Forming system | Rolling Speed | 100 m/min |
| | Roller Stations | About 12 stations forming |
| | Roller Material | Gcr15 Steel with quenching |
| | Shaft Material | 45# Steel Diameter 75mm shaft |
| | Main Motor Power | 7.5 kw |
| Cutting system | Material Of Cutting | CR12 with quench treatment |
| | Hardness | HRC58-62 |
| | Tolerance | +-1.5mm |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase, according to buyer’s request |
| | Control System | PLC with touch screen |
| | Weight | About 5 tons |
| | Way Of Drive | Gearbox Drive |
| | Size of machine | Length 7500mm* Width 800mm* Height 1000m |

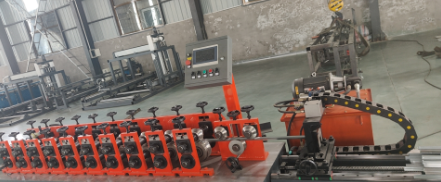

Machine List:
| Machine List | 3 ton passive decoiler | 1 set |
| | Main roll forming machine with logo | 1 set |
| | PLC Control box | 1 unit |
| | Servo Following Hydraulic Cutting | 1 unit |
| | Hydraulic punching device | 1 unit |
| | 6 meters Simple auto stacker | 1 unit |
Product Details:
3 tons passive decoiler
* Coil inner Diameter: ￠460-520mm
* Max out diameter of the coil: ￠800mm
* Max Coil Width:500mm

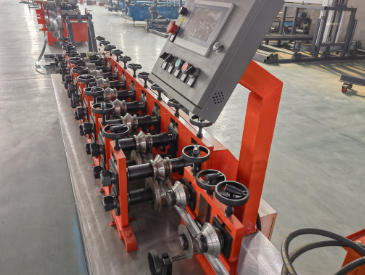

Main Roll Forming Part
About 13 stations with gearbox drive
Servo Following Hydraulic Cutting
* Cutting after forming: Cut the sheet after roll forming to required length
* Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
* Material of blade: CR12mov with heat treatment
* Length measuring: Automatic length measuring
* Tolerance of length: 10m+/- 2mm

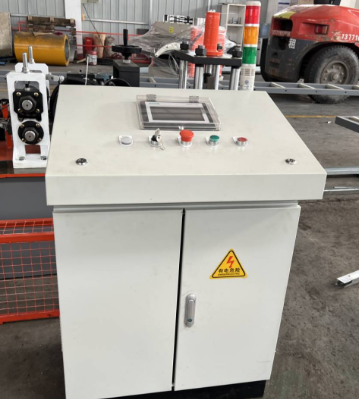

Control Box
* Power supplier: 220V, 60 Hz, 3Phase (adjusted with therequestment)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)
Output Table
It adopts welded steel and supported roller to
transmit the products.
Size:6 meters length Quantity: 1 units
Product Tags:
|
|
High Speed Drywall Roll Forming Machine 100M / Min Omega Wall Angle And U Shape Images
|
