1.5 - 2.0mm Purlin Roll Forming Machine Galvanized Steel U Shaped Profile 10m / Min

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Type : U channel Roll Forming Machine

Control system : PLC with touch screen

Cutting method : non stop cutting

Cutting material : Cr12 Mov with quenched

Main power : 11KW

Thickness : 1.5-2.0mm

Hydraulic Motor Power : 7.5KW

Rolling Speed : 0-10 m/min with driven chain

Contact Now

1.5-2.0mm Galvanized Steel U Channel Machine, U Shaped Profile Roll Forming Machine


1. Technical Parameter

No.

Item

Unit

Parameter

Remark

1

Material

Type

GI,GL,G550

Thickness of Material

mm

1.5-2.0mm

As Customer Requirement

2

Material Width

mm

As Required

Coil Weight

tons

5T

3

Production Speed

m/min

0-10m/min(common)

Adjustable

4

Product

mm

as profile

As Customized

5

Roller Material

Cr15

According to design

Roller Stations

14 Stations

According to design

6

Driving Type

Gearbox

7

Motor Power

kW

11kW

According to design

8

Brand of Electric Control System

Delta or Schneider or Siemens

9

Dimension(L*W*H)

m

About 7500*1000*1200mm

According to design

2. Machine Components

3 tons hydraulic decoiler

1 set

Servo feeder device

1 set
Hydraulic punching device

Roll forming machine

1 set

Hydraulic station

1 set

Electric control system

1 unit

4M Passive out table

1 unit

Safety cover

1 unit

Spare parts

1 package

4. Working flow

Decoiler--Punching--roll forming-- hydraulic cutting- out put tables

5.Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

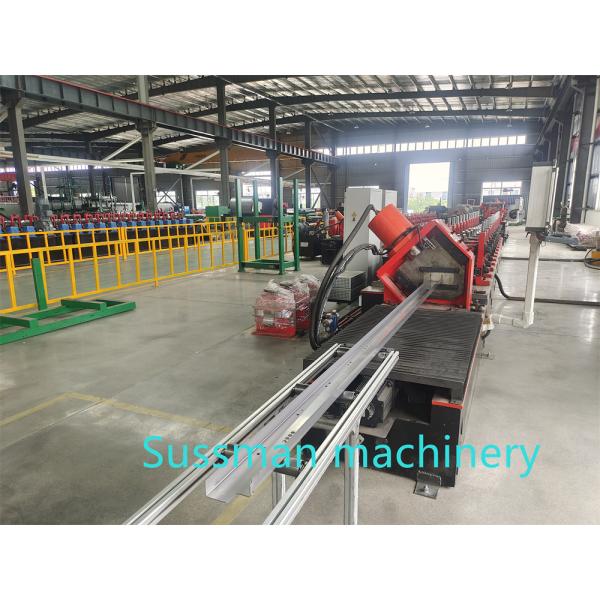

6.Machine picture

1.5 - 2.0mm Purlin Roll Forming Machine Galvanized Steel U Shaped Profile 10m / Min

1.5 - 2.0mm Purlin Roll Forming Machine Galvanized Steel U Shaped Profile 10m / Min


Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
