0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

Name: 012mm Thickness Corrugated Roof Panel Roll Forming Machine
Brand: Sussman
Price: 30000 USD

Wholesale 0.12mm Thickness Corrugated Roof Panel Roll Forming Machine from china suppliers

Brand Name : Sussman

Model Number : DL-RP-T

Certification : ISO 9001 SGS

Place of Origin : China

MOQ : 1

Price : USD 30000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 sets per month

Delivery Time : 50 days

Packaging Details : Normal packing

Material Thickness : 0.12-0.3mm

Main Motor Power : 7.5KW

Tolerance : +-1.5mm

Forming Speed : 0-40 m/min

Roller stands : 20-22 stations

Hydraulic station power : 3 KW

Contact Now

0.12mm-0.3mm Thickness 40 Meters/Min Corrugated Roof Roll Forming Machine With Gear Box Driven

Rolling Speed: 0-40m/min
Feeding width: 1000mm
Steel sheet Thickness: 0.12-0.3mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 20-22 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 3kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements
Way Of Drive:Gear Box Driven

5 tons hydraulic de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Safety cover	1 set
Spare parts	1 set

Profile Drawings

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

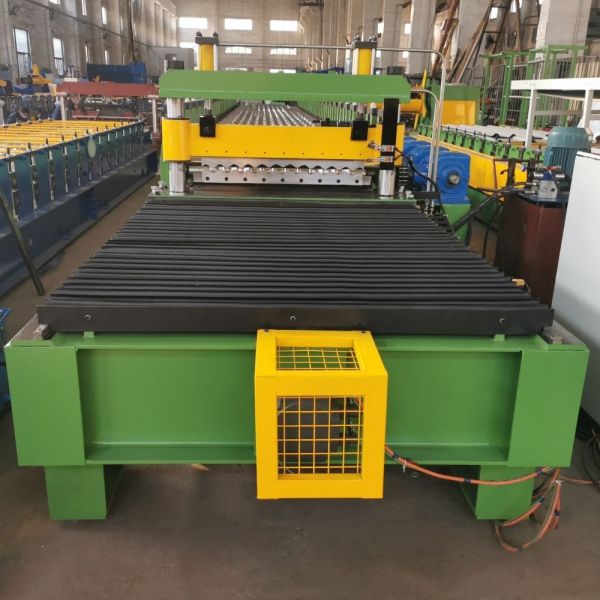

Machine Pictures
