1.0 - 2.0 Mm Thickness Purlin Roll Forming Machine M Profile With PLC Control

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : SM-CP

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : film and steel

Width : C80-300mm width changeable

Cutter material : Cr12Mov Steel

Cutting system : Hydraulic Cutting

Roller stations : 18 stations

Power : 15KW

Drive method : Chain drive

Contact Now

1.0-2.0 mm Thickness M Profile Purlin Roll Forming Machine With PLC Control

Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine)
No. Item Specifications
1 Material Width As profile
2 Diameter of shaft 76mm
3 Forming Speed 8-12meters/min
4 Middle plate 20mm
5 Material of shaft 45#steel with tempering
6 forming thickness 1.0-1.5mm
7 material of rollers 45# steel
8 Cutting type hydraulic cutting
9 Main power 7.5kw
10 Main frame 300H steel
11 Control system PLC
12 Brand of electrical parts Delta
13 Manual decoiler 3 tons
14 Dimensions(L*W*H) About 9.5*1.0*1.2M
15 Weight about 8 tons


2.C Purlin Technical Parameter

Equipment name

Quantity

3T manual uncoiler

1 set

Roll forming machine

1 set

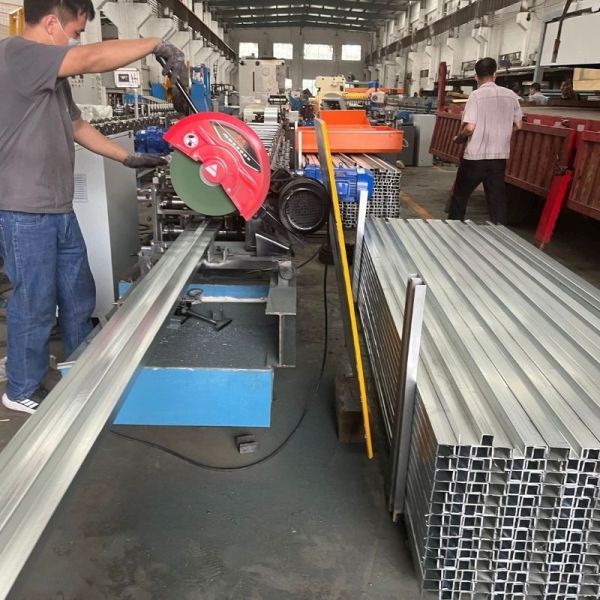

Saw cutting

1 set

4 meters out tables

1 set

Control box

1 unit
Spare parts 1 package


3.Each part of C Purlin Machine

1. 3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm


2. Leveling device


Put the raw material(steel plate) through the beach to manufacture and process

Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi

3. Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.

1.0 - 2.0 Mm Thickness Purlin Roll Forming Machine M Profile With PLC Control

1.0 - 2.0 Mm Thickness Purlin Roll Forming Machine M Profile With PLC Control
