300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 65 days after deposit

Packaging Details : Standard packing

Material Thickness : 0.7-1.2mm for Color coated steel

Hydraulic power : 5.5Kw

Rolling speed : 10-12m/min

Roller statione : About 20 stations

Main Motor Power : 7.5kw

Way Of Drive : 1 inch single chain

Contact Now

300-600mm Width Adjustable Bemo Standing Seam Roll Forming Machine with Perforated Holes

Standing seam roofs have more sleek lines. Instead of the “waves” that you see on a corrugated metal roof, these systems have raised seams that rise up from the flat surface. With a standing seam roof, the seams are above the surface, and the screws are concealed and protected by the roofing material.


Technical Parameter

Item NO

Description

 UnitType RF-RP
1 Material Thickness m 0.7-1.2mm for Color coated steel
2 Forming Speed m/min 0-10
3 Roller stands stands 20
4 Roller Material 45# steel, coated with chrome, fire treated, HRC 58-62
5 Shaft diameter and materail Ф70, 45# steel, fire treated, HRC 58-62
6 Cutting device Pre-cutting device
7 Main Motor Power Kw 7.5 Servo motor
8 Hydraulic cutting Power Kw 5.5
9 Hydraulic pressure Mpa 12
10 Power Supply According to client’s requiry
11 Tolerance mm 1.5
12 Material of cutting Cr12
13 Control system PLC with touch screen
14 Main machine weight T 6-7 Ton
15 Width 300-600mm adjustable
16 Outer specification m 7*1.2*1.2
17 Transmission Type 1 inch chain drive


Main Component

5 ton passive de-coiler 1 set
Pre-punching and Pre-cutting device 1 set
Main roll forming machine with wheels 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
4 meters passive table 1 unit



Glazed tile working flow

300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

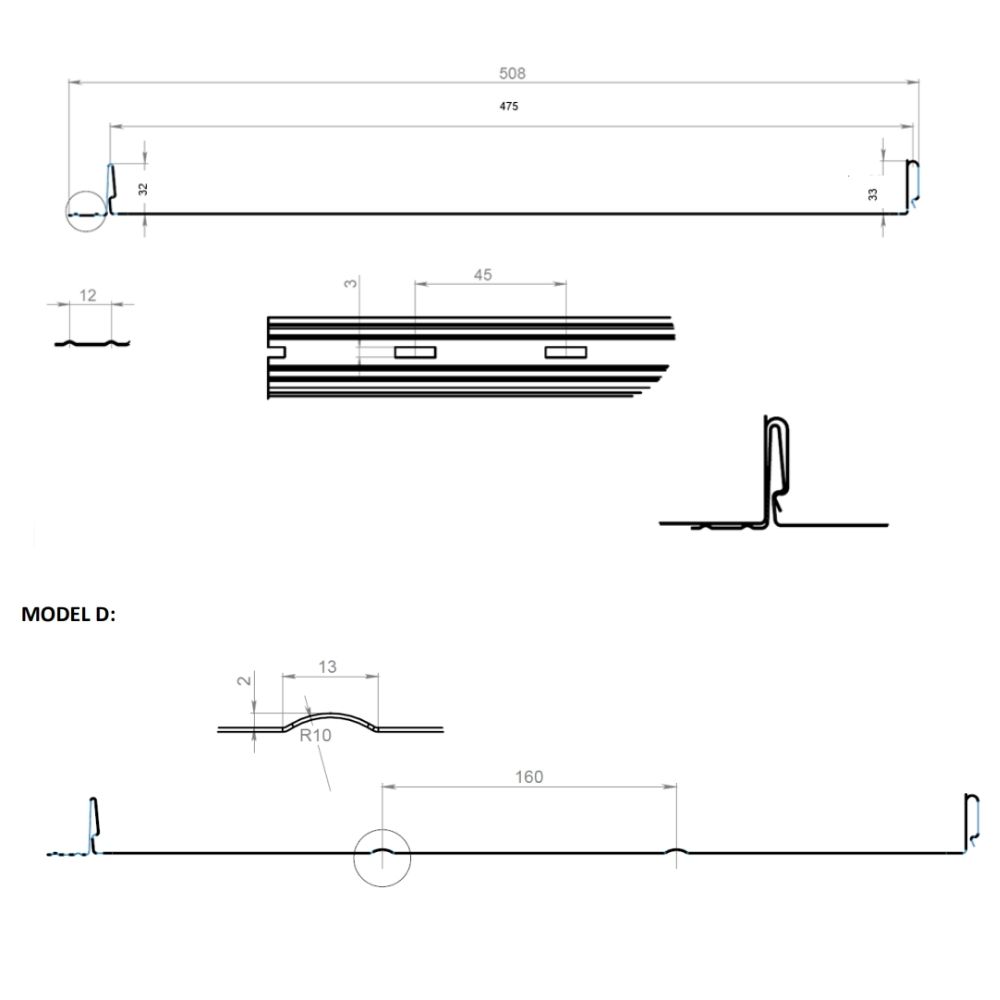

Profile Drawing

300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

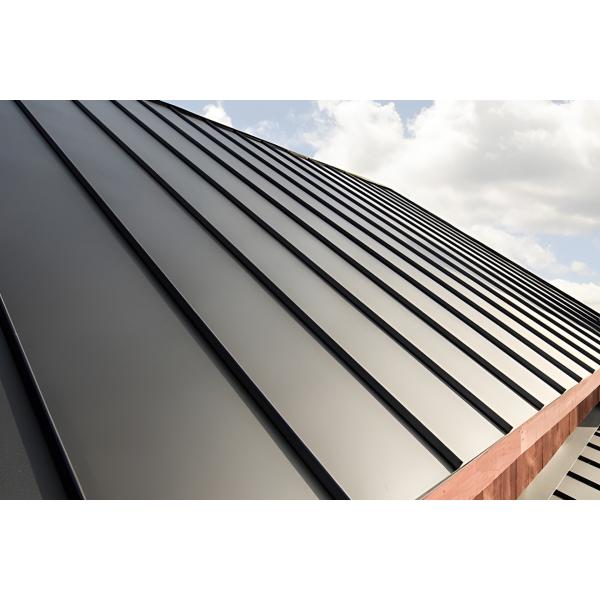

Application

300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

300mm Adjustable Roof Panel Roll Forming Machine Bemo Standing Seam With Perforated Holes

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
