1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : SM-RM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 0.05-0.25mm stainless steel

Forming speed : 0-8m/min adjustable

Motor : 4KW

Roller size : 310mm

Material width : 1250mm

Embossing pattern : Pearl Flower Pattern

Contact Now

1250 mm Width Pearl Flower Pattern Automatic Stainless Steel Embossing Machine Metal Coil Embossing Machine


Characteristic

Automatic aluminum coil embossing machine is fully automatic production line, which works from the decoiler to leveling system and then go to embossing machine, last do the recoiling work.

Embossing can help open new markets, solidify existing business relationships, and enhance almost any flat-rolled product.

Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing, and also be formed by the full automatic by PLC controling box.


1.Uncoiling Machine

1.Outline data: About 2000×900×1350mm
2.coiled material mode:Φ200×1200mm air shaft
3.support the weigh: ≤1000kg
4.Side with brake systems: Magnetic powder brake

1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel

2.Embossing Machine

Product name

Sheet metal embossing machine

NO.

Items

Parameters

Remark

1

Suitable

Material

Type

STAINLESS/GL/ GI/PPGI/AL

Width

500-1250mm

Custom

Thickness

0.30-0.70mm

Custom

2

Product
Specifications

Embossing Type

Double side

Custom

Embossing Pattern

Pearl pattern

Custom

Length

Any length

Programmed

Width

Adjustable

3

Working Speed

8-10 m/min

Standard machine

4

Control System

Mitsubishi/Siemens PLC& transducer

Custom

5

Power

About 4 KW

6

Total Weight

About 12T

Up to final design


1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel
3.Recoiling Machine

1.Outline data: about 2600×900×1350mm
2.Coiled material mode:Φ200×1200mm air swelling shaft
3.Support the weigh: ≤1000kg
4.Motor power: 220V 60Hz 3Phase 100 Nm torque motor
5.Speed: 0-18m/min

1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel
4. Flower Pattern
1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel

5.Applications

Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations, wall cladding, ceilings, bathrooms, kitchens and balconies.

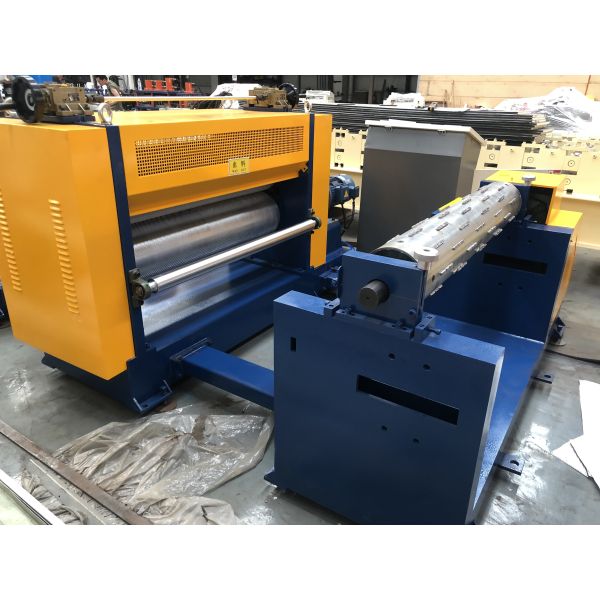

6. Embossing Machine Photo

1250mm Width Metal Coil Embossing Machine Pearl Flower Pattern Stainless Steel
