1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Brand Name : Sussman

Model Number : RF-ST41

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : USD29500-USD39500 per set

Supply Ability : 10 sets/month

Delivery Time : 75 days after deposit

Packaging Details : Film and steel

Material Thickness : 1.5-2.5 mm galvanized coils and black steel

Forming speed : 12-15m/min

Roller stations : about 22 stations

shaft material : 45# steel

shaft diameter : 85mm

Hydraulic pressure : 12Mpa

Material of main shaft : 45# high quality steel

Cutting : hydraulic following cutting

Contact Now

1.5-2.5mm Metal Solar Slotted uni Strut Channel Roll Forming Machine With Gear Box Device

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Description

As a professional manufacturer,we can make Metal Customize Strut Slotted Furring Channel Purlin Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly

Detailed Images

Suitable material
 Galvanzied coils and Black steel
Coil Width 41mm*41mm, 41mm*21mm, 41*62mm, as customized
Thickness 1.5-3mm as customized
Power 380V 50Hz 3Phase as custom
Main motor 18.5KW Siemens
Hydraulic motor 7.5KW Siemens
Speed 15m/min
Forming stations 22 stations
Roller material Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material 45# steel quenched and tempered
Shaft diameter 90mm
Gear box 160 type
Screem HMI Delta or Siemens, Touch Screen
PLC Delta or Siemens
Processing precision Within 1mm
Size 17.6m×1.5m×1.2m
Weight 18.5T

Profile drawing

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Machine list

S.N Equipment name Quantity
1 3T hydraulic un-coiler 1 set
2 Leveling device NC 300mm 1 set
3 Servo feeding device 300mm 1 unit
4 Press machine JH21-63 1 unit
5 Main roll forming machine 1 set
6 Servo following cutting 1 set
7 control box 1 set
8 Out tables 2 units
9 Spare parts 1 package
10 Punching die set 1 set
11 Safety cover 1 set
12 Cutting blade 2 sets

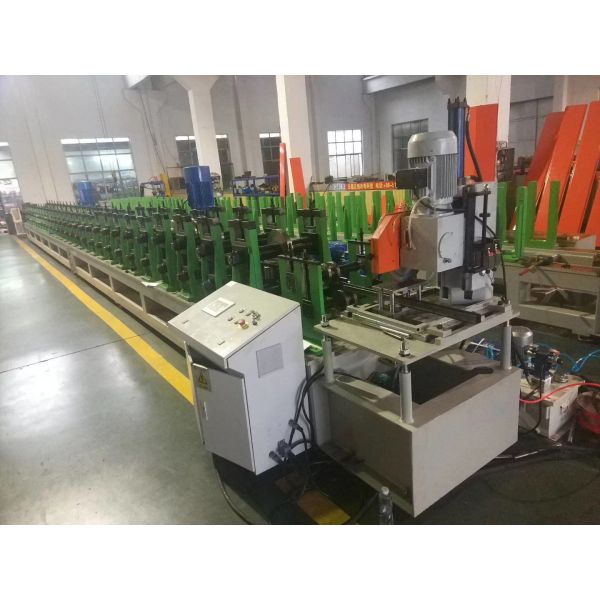

Machine photos

De-coiler

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Machine layout

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Finished products

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine
