5.5KW 18 Stations C Channel Roll Forming Machine Cr12 Steel Cutter

Name: 55KW 18 Stations C Channel Roll Forming Machine Cr12 Steel Cutter
Brand: Sussman
Price: 1 USD

Wholesale 5.5KW 18 Stations C Channel Roll Forming Machine Cr12 Steel Cutter from china suppliers

Brand Name : Sussman

Model Number : SM-CP

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P

Supply Ability : 10 sets per month

Delivery Time : 75 days

Packaging Details : film and steel

Material thickness : 2-4mm

Roller stations : 18 stations

Rolling Speed : 10-12m/min

Cutting type : Hydraulic Cutting

Hydraulic cutting : 5.5KW

Cutter material : Cr12 Steel

Weight : About 4 tons

Main Power : 11kw

Contact Now

C Channel Purlin Steel Frame Roll Forming Machine with 3 Cuttings

C Purlin Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	1.0-2.5 mm Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils
De-coiler	Weight	3 tons passive
Forming system	Rolling Speed	10-12m/min
	Roller Stations	About 18 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	11 kw
	Hydraulic cutting Power	5.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ, 3phase
Electrical control system	Control System	PLC with touch screen Japanese Panasonic and Yaskawa Brand
	Way Of Drive	1 inch single chain
	Size of machine	Length 7300mm* Width 800mm* Height 1000mm

Main Components

S.N	Equipment name	Quantity
1	3T manual uncoiler	1 set
2	Levelling device	1 unit
3	Punching station (including punching mould)	1 unit
4	Main roll forming machine	1 set
5	Main drive	1 unit
6	Cutting unit	1 set
7	Hydraulic station	1 set
8	Control system ( including control cabinet)	1 set
9	Out put rack	1 set
10	Cutting mould	3 sets

Application

5.5KW 18 Stations C Channel Roll Forming Machine Cr12 Steel Cutter

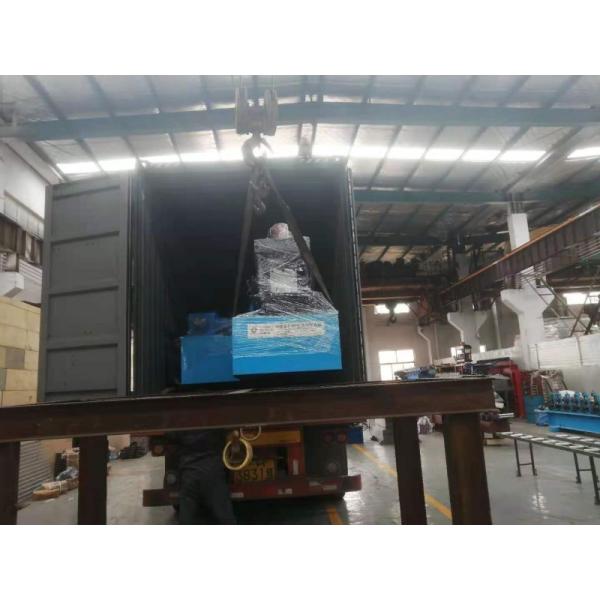

Loading pictures

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion).

Delivery time: 75 days after deposit

Our Service

Guarantee period: 12 months free service.

Installation and training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
