G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers

Name: G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers
Brand: Sussman
Price: 1 USD

Wholesale G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers from china suppliers

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Stations : 13 Rollers

Power : 7.5Kw

Hydraulic cutting power : 4Kw

Material of cutting : Cr12Mov with quench HRC58-62°

Weight : 3T

Transmission : Chain

Contact Now

G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers

1. Technical Parameter

Item NO	Description	Offered specification
1.1	Roller stations	About 13 stations
1.2	Voltage	380V, 50HZ, 3phase
1.3	Raw material	Galvanized coils
1.4	Rolling thickness	0.5-1.0mm
1.5	Dimension	4500×800×1200(mm)
1.6	Main motor power	7.5kw
1.7	Roller material	45# steel, coated with chrome, Quenching
1.8	Shaft diameter	Φ60mm ,material is 45# forge steel
1.9	Transmission	By chain 1 inch
1.10	PLC	Delta brand
1.11	Material of chain	45# forged steel with frequency quenching, 12A
1.12	Material of cutting	Cr12Mov with quench HRC58-62°
1.13	Tolerance	+-1.5mm
1.14	Weight	3 Tons

2. Machine Components

3Tdecoiler	1 set
Hydraulic Cutting	1 set
Main roll forming machine	1 set
Control box system	1 unit
Out tables	2 units
Tool box	1 package

3. Features of the production line

1) Directly input the data on the touchable screen, it is easy operation.

2) Automatically continually manufactures high quality product with PLC.

3) Saving time and cost owing to high speed running with hydraulic system.

4) Professional designing for manufactures roofing & walling

5) Unit one, one power wire

4. Application

Non-load-bearing exterior curtain walls
Axial load-bearing interior and exterior walls
Interior non-load-bearing walls
Floor joists and headers
Rafters, purlins, and girts

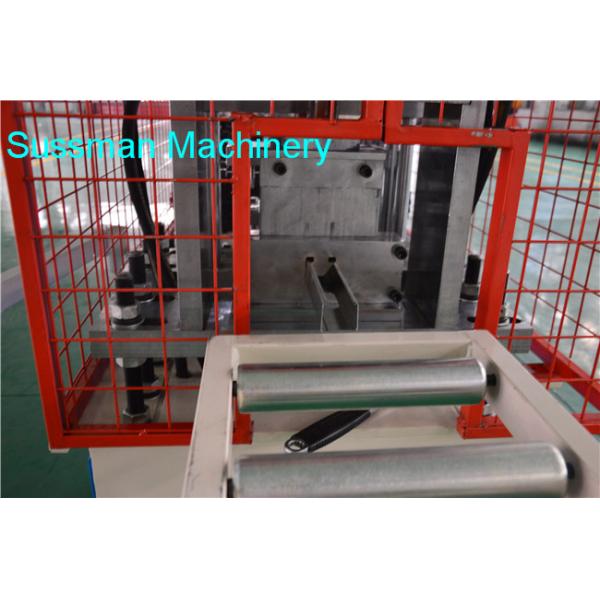

5. Machine picture

G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers

Product Tags:

metal stud and track roll forming machine

drywall stud roll forming machine

G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers Images
