Galvanized Steel Floor Deck Roll Forming Machine 28 Stations 0.75 - 1.2mm Thickness

Name: Galvanized Steel Floor Deck Roll Forming Machine 28 Stations 075 12mm Thickness
Brand: SUSSMAN
Price: 1 USD

Wholesale Galvanized Steel Floor Deck Roll Forming Machine 28 Stations 0.75 - 1.2mm Thickness from china suppliers

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : CE, ISO, SGS

Place of Origin : Wuxi, Jiangsu Province, China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T

Delivery Time : 60-80 days

Packaging Details : Film and Steel

Material : Galvanized steel

Material thickness : 0.75-1.2mm

Forming station : 28stations

Forming speed : 0-12m/min

Machine weight : bout 8ton

Machine dimension : 8mx0.88mx1m

Contact Now

PLC Control Roll Forming Equipment For Floor Decking Panel 7.5KW 380V 50Hz

all parts with the floor decking roll forming machines manufacturer

Roll forming machine	1 set
Uncoiler system	1 set(Manual, hydraulic decoiler can be provided)
Entry Beach	2 set
Mould	3 set(Adjustable )
Control Panel	2 set
Hydraulic Station	1 set
Table	2 set(adjustable)
Punching system	1 set(Depend on your need)

the parameters of floor decking roll forming machines manufacturer

floor decking roll forming machines manufacturer Description	Introduction
Working efficiency	8-12m/min
Thickness of Material	1.2-1.5mm(can be changed according to customers need)
Width of material	According to customers need
Control system	PLC(The brand can be choose)
Uncoiler system	5Ton Manual Operation(1250mm width)
Forming by rolling	24 rows(According to the machine design)
Roller material	GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
Shaft and the diameter of axle	45#Aluminium-processing ,diameter of axle=100mm
Main part power	2*11kw
Hydraulic motor power	5.5kw
Hydraulic pressure	12Mpa
Scissor material	Cr12Mov, herd steel HRC 58-62°C
length tolerance	±1.5mm
voltage	380V, 50HZ,3 phase(adjustable by customer needs)
Frame form	Middle plate
Driving Method	Chain
Color	Yellow and blue(adjustable)
Size	lengthWidthHeight - 6.80.81.2m
weight	about 8.5T
Package	Nude package in 1*40GP container
Delivery date	40 working days
Payment Method	30% T/T in advance and balance 70% after inspection confirmation before shipment.
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

Galvanized Steel Floor Deck Roll Forming Machine 28 Stations 0.75 - 1.2mm Thickness

Product Tags:

steel forming machines

corrugated roll forming machine

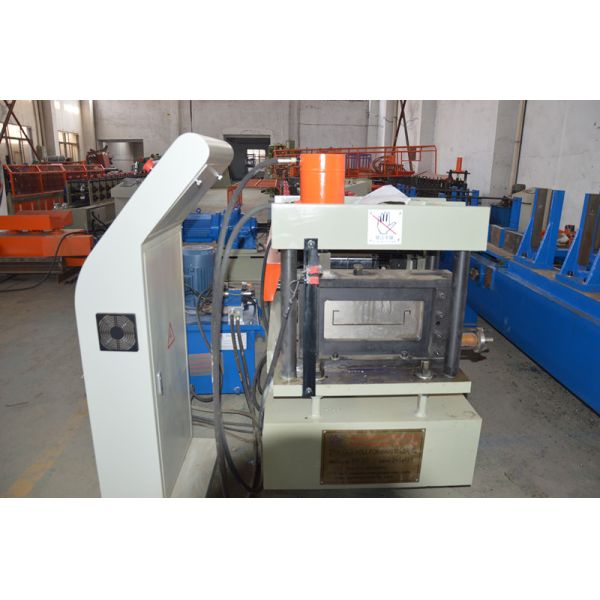

Galvanized Steel Floor Deck Roll Forming Machine 28 Stations 0.75 - 1.2mm Thickness Images
